VS-3M-X
Application
Provides sound and light signals emission for personnel warning during emergency situations.
Used in explosion-hazardous zones at indoor and outdoor sites of hazardous industrial objects, transport or vehicles. Might be used in atmosphere precipitation or sun radiation affecting conditions.
Features
- housing made of aluminum alloy or stainless steel
- various types of mounting devices for protective cable sheath (metal hose conduit, armored cable, pipe)
Design, principle of operation

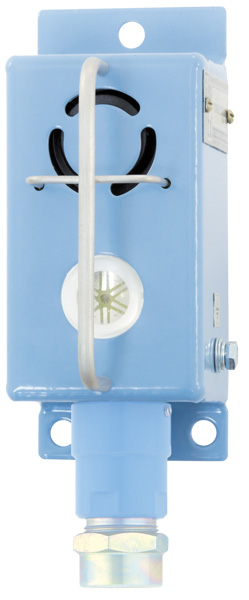

The housing is manufactured of aluminum alloy with galvanic anti-corrosive and protective varnish-and-paint coatings. Cavity of housing is filled with epoxy compound. Piezo sound alarm and bright multi-chrystal LED are placed on the front panel. Cable fitting with two-wire round cable is placed on the bottom part of the unit housing. The cable is replaceable – cable sheaths fixture elements are placed inside the cable entry compartment. Connections diagrams are given at picture.
<
