VS-3M-XX

Design, principle of operation

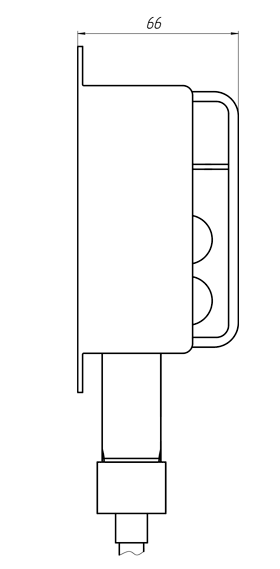

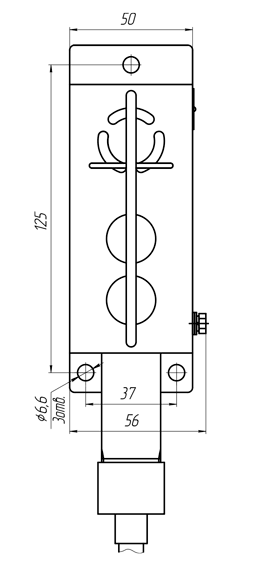

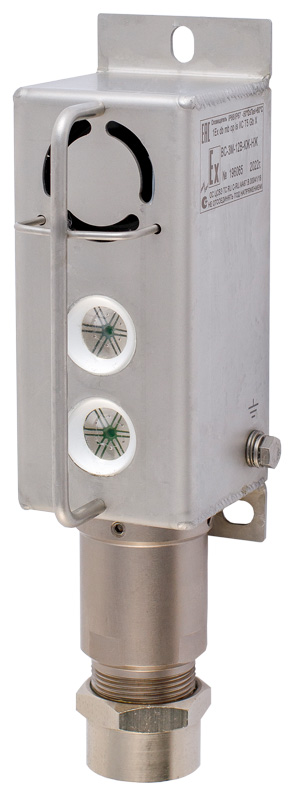

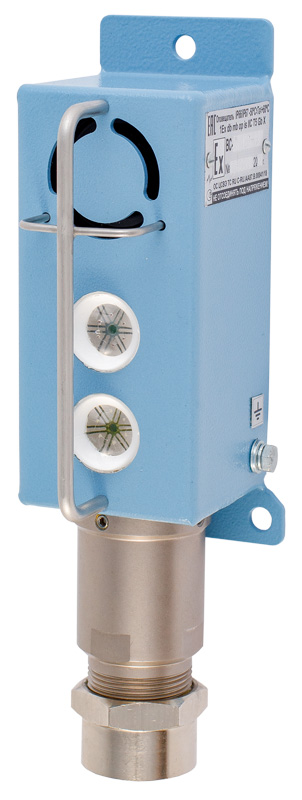

The housing is made in aluminium alloy and has a galvanic corrosion-resistant and protective varnish-and-paint coating. Cavity of housing is filled with epoxy compound. На Piezo sound emitter and two monochristal LEDs are place on the front panel.  The cable fitting with non removable four-wire cable is placed on the bottom part of the housing. Signal device is being connected by a four-wire scheme, given at picture.

Nominal power voltage, LED glowing colour, sound signal adjustment, cable fitting type are determined during order placement.

VS-3-P-2SF-GS Signal device might be manufactured for 12V and 24V power voltage and provide possibility to choose the alarming modes. Has six available sound signals, two volume levels and four operation modes for each light indicator (constant glowing, flashing with frequency of 4, 2 and 0,5 Hz). Adjustment is executed with the magnet applying the certain place of the housing.

<

p style=”text-align:justify; text-indent:30px;”>When the power is on the LEDs start gloewing and the modulated sound signal is emitted. VS-3-P-2SF-GS light and sound alarm is manufactured in priorly chosen modification.

<
