Purpose, operation principle

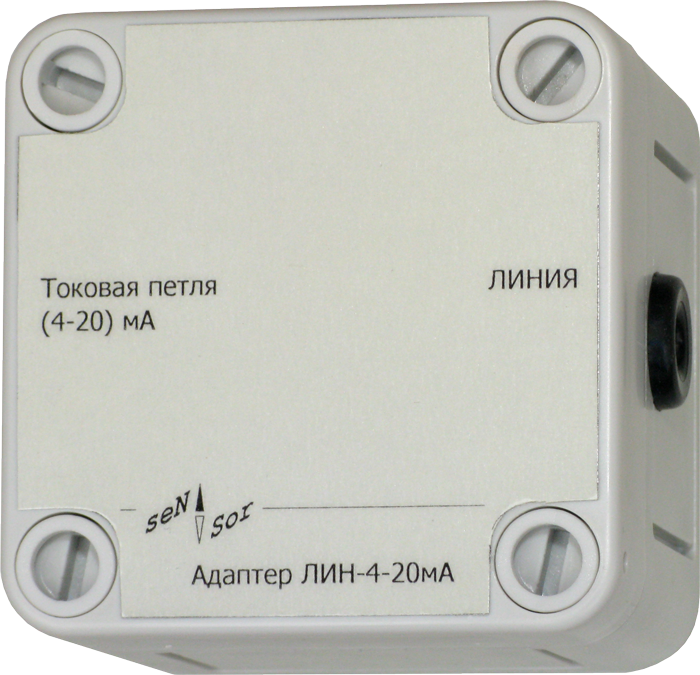

Adapters (pic. 1... 3) designed for measurement parameter value conversion from SENS sensor to a 4-20mA curent signal. “...-24V” adapters have built-in power unit, providing SENS sensors operation powering. “VUUK -...” adapters are designed for explosion hazardous localtions operation, and having 1ExdIIBT4 explosion-proof marking. Operation principle: adapter acquires the value of measured parameter and converts the received data to the 4-20mA corrent signal. Product range and technical feauter are given in table 1, connection diagrams - pic. 4.
SENS sensors operation with LIN-4-20mA adapters provides an advantage of using only one data acquisition cable for several sensors (pic. 5).

Designation

Adapters are designated in accordance with technical features table during order placement.(see below). The parameters which values are give in the “Note” are highlighted in bold.

Technical parameters

Adapter designation

LIN-4-20mA-DIN

LIN-4-20mA

LIN-4-20mA-24V-A1)

VUUK-ЗKV-LIN-4-20mA-B1)

VUUK-ЗKV-LIN-4-20mA-24V-B1)

Housing type, pic...

1

2

3

Connection scheme, pic...

4A2)

4A

4B

4A

4B

Power voltage, V 3)

6...12 (SENS)

4...15 (SENS)

12...42

4...15 (SENS)

12...42

Consumed curent, not exceeding

30 mA

5 mA

20 mA4) (at 24V)

5mA

20mA4)(at 24V)

Output voltage (to SENS line), В

-

-

7+-0,5

-

7+-0,5

Load curent, A, not exceeding

-

-

0.15

-

0.15

Curent output features:

- Acceptable input curent, V

- curent measurement range, mA



9...42

3.5...21.2

Reduced conversion error:

- main, %

- additional temperature, %/10 °С



0,1

0,1

Housing material

shock-resistant polystyrene

steel 09Mn2Si

Explosion protection marking

-

1ExdIIBT4

Ambient temperature range, °С

-30 ... 50

5…50

-50 ... 60

-

Water and dust ingress protection as per IEC 60529

IP20

IP66

Overall dimensions, mm

17,5x91x70

65x65x57

125x155x70

Average lifetime, years, not less than

10

1)  - Designation for order placement:

3KV (or 2KV) - the digit corresponds to the quantity of VUUK unit cable fittings.

A - DIN rail mounting optional feature designation; no designation - DIN rail mounting element is not installed; DIN designation - DIN rail mounting element is installed.

B - calbe sheaths fixture element: no designation - UKM 10; UKM12/UK16/UK15 - corresponding calbe sheaths fixture element.

2)  - diagram is simplified,to get more details refer to OM.

3)  - separate power unit is required for curent loop (12...42)V.

4)  - consumption of devices connected to the line is not calculated.

5)   - in the pointed temperature measurement range.
