VS-5M-XXX

Three light emitters. Programmable model. Connection via three-wire power and signal line SENS.

Design, principle of operation

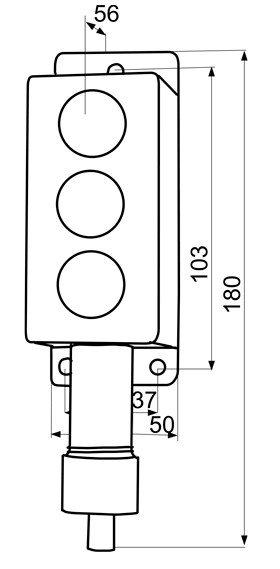

Design. VS alarm is manufactured within housing made of aluminum alloy filled with epoxy compound. The controller board and three multi crystal LED emitters are located within the housing. The cable entry with terminal clamps is placed at the bottom of the housing.

Principle of operation. After power is on the alarm receives the control level data from sensors connected to SENS line Device signaling channels (light) are activated in different modes depending on received status of level monitored by sensors.

Configured parameters:

  • continuous glowing or flashing of light emitters
  • triggering on preset values of monitored levels of single or multiple sensors with adjustable priority
  • signaling duration timer

Control. The alarm can be switched off by the signal transmitted within the line by pressing the certain button on control and indication devices like MS-K-500, KN-LIN-STOP or SENS software. The alarm is a MASTER unit within SENS line. This allows to use the alarm along with sensors without additional secondary devices of SENS Measurement System.
