VS-5M-XX-GS

Two light emitters. Single sound emitter. Programmable model. Connection via three-wire power and signal line SENS.

Features

  • housing made of aluminum alloy or stainless steel
  • various types of mounting devices for protective cable sheath (metal hose conduit, armored cable, pipe)
Specifications

Device main operation principle

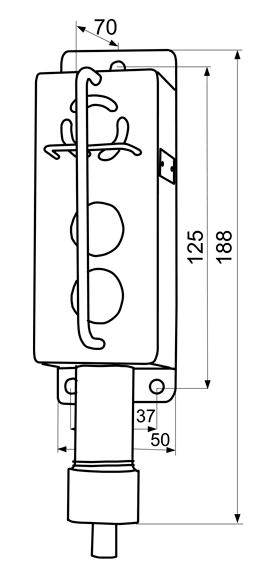

Device. VS-5M-XX-GS alarm is made in aluminum alloy housing with epoxy compound filling. Controller board, two mono-christal LED emitters and a piezo siren are placed within the housing. The cable entry with terminal clamps placed at the bottom of the housing.

Principle of operation. After power is on the alarm receives the control level data from sensors connected to SENS line The sound alarm might be activated on in different modes depending on received control level data from sensors.

Adjustable features:

  • continuous glowing and periodical flashing (blinking) of light emitters
  • sound signal modulation type
  • sound level (“loud” and “reduced volume”)
  • activation according to preset values of one or several sensors, with priority level adjustment
  • alarm signal duration timer

Control. The alarm can be switched off by the signal transmitted within the line by pressing the certain button on control and indication devices like MS-K-500, KN-LIN-STOP or SENS software. The alarm is a MASTER unit within SENS line. This allows to use the alarm along with sensors without additional secondary SENS devices.
